HARMONY™ SLIDING SHOWER SYSTEM
The Harmony™ Slider Shower Door System uses top quality stainless steel and ball bearing wheels that slide quietly and effortlessly across the sturdy rectangular header tube. It provides a stylish yet affordable option when installing a sliding shower door. The minimalistic hardware and sleek design create a frameless look that is much more aesthetically pleasing than traditional aluminum framed sliders.
The Harmony™ Sliding Shower Doors System is designed to work with 5/16” to 3/8” thick tempered glass.
Harmony Slideshow

Harmony Sliding Shower Hardware

Harmony Sliding Door System

Harmony Shower Door System Diagram

Harmony Shower Door System Header Tube

Harmony Fixed Panel Mount

Harmony Roller

Harmony Door Pull

Harmony Door Guide

Harmony Shower Seal

Harmony Stopper

Harmony Installation Hardware

Harmony Installed Matte Black

Harmony Matte Black Part Family

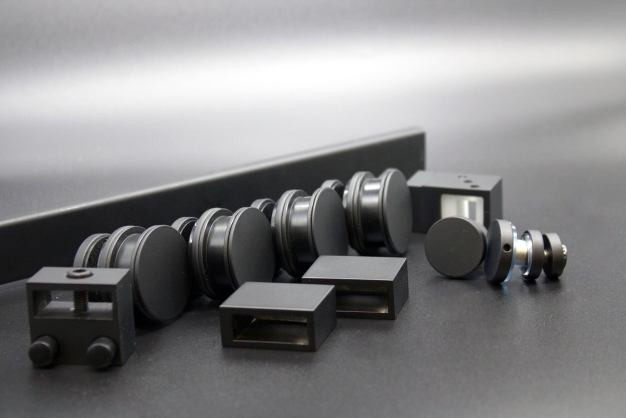

Kit Includes (Part #C70-4200)
Satin Brass, Matte Black, Polished or Brushed finish available
Rollers x 4 (1- ½”)
Stopper x 1
L-Seal x 1
Wall Mount x 2
Header Tube x 1 (1-3/16” x 7/16” x 78”)
Door Pull x 1 (2- ¼”)
Adjustable Header Mount x 2
Fixed Panel Mount x 2 (1- 1/8”)
Door Guide x 1 (item 6)
Installation Hardware x 1
Optional Parts
Glass Mount for Return Panel (Part #C70-4103)
Product Details
Product Features
- Durable Stainless Steel Construction
- 4 ball bearing wheels provide security and smooth, quiet operation
- Minimalistic styling
- Fixed and Gliding Panel are reversible for installation
- Available in Matte Black, Polished or Brushed Finishes
- Compatible with glass return panel
Additional Information
- Accommodates glass thicknesses from 5/16” to 3/8”
- Maximum Door Size of 30”
- Maximum Door weight of 88lbs
- All Installation Hardware included except clamps or channel for fixed panel
- Comprehensive Instructions including Glass Fabrication Cut-Out Available
- Glass Fabrication & Drilling of Header Required
- Design Assistance Available
